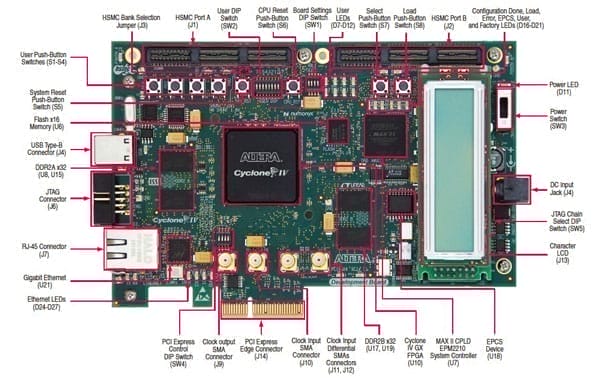

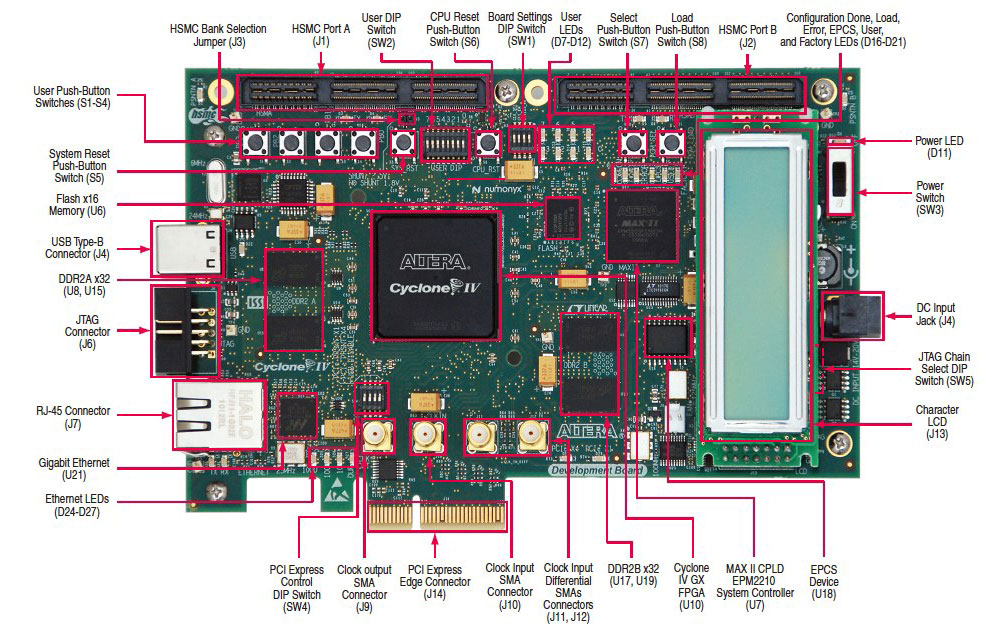

【DK-DEV-4CGX150N】Altera Cyclone IV GX FPGA Development Kit
- 产品型号： DK-DEV-4CGX150N/C4GFP
- 产品品牌： TERASIC友晶科技/Intel FPGA
- 产品规格： Cyclone IV GX EP4CGX150N FPGA in a F896 package
- 产品价格： 欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！
- 咨询热线：18062095810
Altera® Cyclone® IV GX FPGA Development Kit provides a comprehensive, best-in-class design environment to quickly begin developing low-cost and low-power FPGA system-level designs. This kit helps to shorten your product’s development cycle so that you can meet your product’s time to market and production milestones. With this platform, you can:
- Develop and test PCI Express® Gen1 x1, x2, x4 endpoint designs using the Cyclone IV GX PCI Express hard intellectual property (IP) and PCI-SIG® -compliant board
- Develop and test multi-lane protocol bridging designs using on-board DDR2 memory and through its expansion capability, the high-speed mezzanine card (HSMC) connectors. There are over 30 different HSMCs available through Altera partners and supporting protocols such as CPRI, SATA, and SDI.
- Come up to speed quickly with your FPGA design by reusing the example designs provided by the kit's Board Test System.
- Use the kit´s host board as design model for your product’s low-cost and low-power board.
Featured device
- Cyclone IV GX EP4CGX150N FPGA in a F896 package
Configuration status and set-up elements
- Passive serial (PS) configuration via a MAX® II EPM2210 CPLD and flash memory
- On-board USB-BlasterTM download cable using Quartus® II Programmer
Clocks
- On-board clock oscillators: 50 MHz, 100 MHz (programmable), and 125 MHz
- SMA connectors for external clock input
- SMA connectors for clock output
General user input and output
- LEDs
- LCD display
- Push button and dual in-line package (DIP) switches
Memory devices
- 128-megabytes (MB) DDR2 SDRAMs with a 32-bit data bus
- 64-MB sync flash and 4-MB SSRAM
Component and interfaces
- PCI Express edge connector
- 10/100/1000-Mbps Ethernet PHY with RJ-45 connector
- Two HSMC connectors
- Power measurement circuitry
Power
- Laptop DC input
- PCI Express edge connector power
Other features
- PCI Express short card form factor
- RoHS-compliant

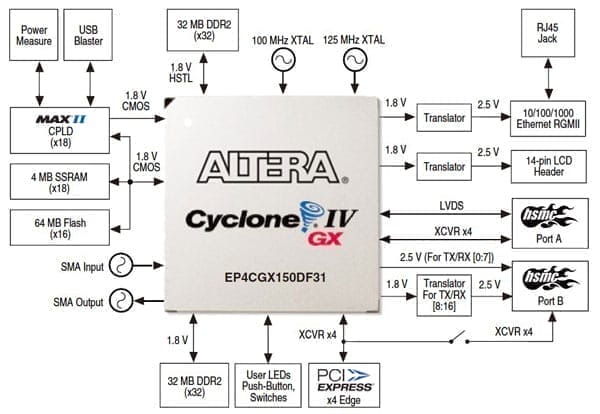

Altera Cyclone IV GX FPGA Development Board Block Diagram
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[C4GFP] Altera Cyclone IV GX FPGA Development Kit
产品编号: T0073
 重量: 3,500g |
xxx |
Documents
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Cyclone IV GX FPGA Development Kit User Guide (PDF) | 2015-03-19 |
 |
||
| Cyclone IV GX FPGA Development Board Reference Manual (PDF) | 2015-03-19 |
|
CD-ROM
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Kit installation | 2015-03-19 |
 |
