The Altera® Cyclone® V SoC Development Kit offers a quick and simple approach to develop custom ARM® processor-based SOC designs accompanied by Altera’s low-power, low-cost Cyclone V FPGA fabric. This kit supports a wide range of functions, such as:

• Processor and FPGA prototyping and power measurement
• Industrial networking protocols
• Motor control applications*
• Acceleration of image- and video-processing applications*
• PCI Express® (PCIe®) x4 lane with ~1,000 MBps transfer rate (endpoint or rootport)

*Application-specific daughtercards, available separately, supporting a wide range of I/O and interface standards.


Featured devices

• Cyclone V SX SoC—5CSXFC6D6F31C6N (SoC)
• MAX^® V CPLD—5M2210ZF256C4N (system controller)
• MAX II CPLD—EPM570GF100 (embedded USB-Blaster^TM II cable)

FPGA configuration sources

• Embedded USB-Blaster II (JTAG) cable
• EPCQ flash (PFL)
• Hard processor system (HPS)

FPGA memory

• 1 GB DDR3 SDRAM (32 bit)

FPGA I/O interfaces

• 2X 10/100 Ethernet PHYs (EtherCAT)
• PCIe Gen 1 x4 female connector
• Universal high-speed mezzanine card (HSMC)—x4 transceivers, x16 TX LVDS, x16 RX LVDS
• One serial digital interface (SDI) channel
• Four SMAs for one transceiver channel
• x4 push buttons
• x2 switches
• x4 LEDs

HPS boot sources

• 128 MB QSPI Flash
• Removable Micro-SD Card flash
• FPGA

HPS memory

• 1 GB DDR3 SDRAM (32 bit) with error correction code (ECC)
• 128 MB QSPI flash
• Micro-SD Card socket with 4 GB Micro-SD Card flash device

HPS I/O interfaces

• x1 USB 2.0 On-the-Go (OTG)
• x1 10/100/1000 Gigabit Ethernet (10GbE/100GbE/1000GbE)
• x1 CAN
• x1 UART (UART to USB bridge)
• x1 real-time clock (with battery backup)
• x1 two-line text LCD
• 1-/2-channel, 20 bit delta-sigma analog-to-digital converter (Linear Technology LTC2422)
• x4 push buttons
• x4 switches
• x4 LEDs

Clocking

• Four-output programmable clock generator for FPGA reference clock inputs
• 125 MHz LVDS oscillator for FPGA reference clock input
• 148.5 MHz LVDS programmable voltage-controlled crystal oscillator (VCXO) for FPGA reference clock input
• 50 MHz single-ended oscillator for FPGA and MAX V FPGA clock input
• 100 MHz single-ended oscillator for MAX V FPGA configuration clock input
• SMA input for HPS clock

Power

• Laptop DC input 14—20 V adapter

System monitoring circuit

• Power (voltage, current, wattage)

HSMC breakout board

HSMC loopback board

• Mechanical
  • Board dimensions—8.19” x 5.22”
• Cyclone V SX FPGA Development Kit software content
• Design examples
  • Board test system (BTS)*
  • Golden System Reference Design with Board Update Portal web server
• Complete documentation
• SoC Embedded Design Suite Subscription Edition
  • ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
  • Hardware-to-software handoff tools
  • Linux run-time software for application development
  • SoC hardware libraries for firmware development
  • Application examples
• Free software supported by Quartus^® II software v13.1, Web Edition

  * Watch the video to learn more.

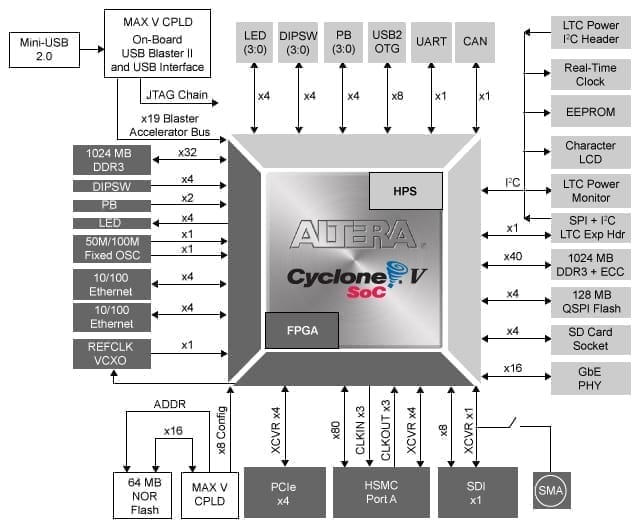

Schematic of the Cyclone V SX SoC Development Board

No	产品名称	售价(RMB)
1.	[C5SOC] Cyclone V SoC Development Kit and SoC Embedded Design Suite 产品编号: T0161  重量: 3,500g	xxx
