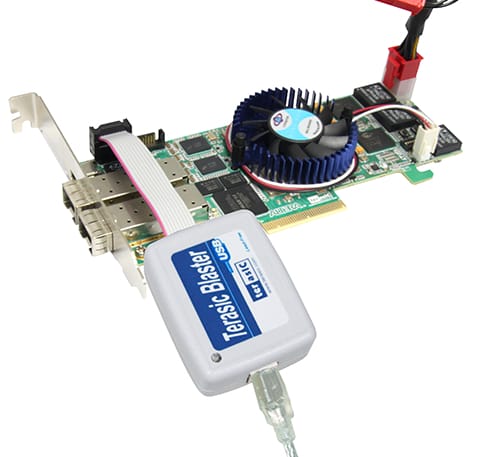

【TR5-Lite】TERASIC友晶TR5 FPGA Development Kit
- 产品型号： TR5-Lite[P0167]
- 产品品牌： TERASIC友晶科技/Intel FPGA
- 产品规格： Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
- 产品价格： 欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！
- 咨询热线：18062095810
The TR5-Lite Stratix V FPGA Development Kit a slim form-factor PCIe board that features maximum power in a minimum size. Perfect for 1U chassis servers and other stringent environments, the TR5-Lite includes high speed SFP+ interfaces and high-bandwidth memory architecture for high performance computing, cloud systems, and ultra low-latency trading.
The TR5-Lite Board
Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
-
JTAG header for FPGA programming
-
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
General user input / output:
-
4 LEDs
-
1 LED Array
-
2 push-buttons
-
2-position DIP switch
On-Board Clock
-
50MHz Oscillator
-
Programmable oscillators Si570 and CDCM61004
Memory
-
36MB 550MHZ ISSI
-
2GB 933MHz DDR3 SDRAM
-
256MB FLASH
Communication Ports
-
Two SFP+ connectors
-
One Serial ATA (SATA II) host port
-
PCI Express (PCIe) x8 edge connector
-
One RS422 transceiver with 1394 connector
System Monitor and Control
-
Temperature sensor
-
Fan control
Power
-
PCI Express 6-pin power connector, 12V DC Input
-
PCI Express edge connector power
Mechanical Specification
-
PCI Express low-profile and half-length
Connectivity

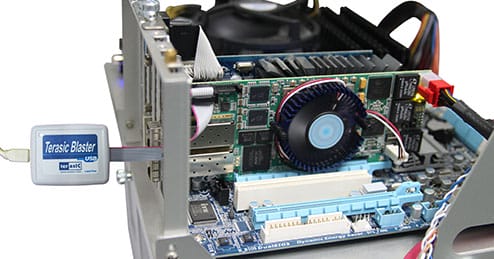

连接示意图
Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
- JTAG header for FPGA programming
- Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
General user input / output:
- 4 LEDs
- 1 LED Array
- 2 push-buttons
- 2-position DIP switch
On-Board Clock
- 50MHz Oscillator
- Programmable oscillators Si570 and CDCM61004
Memory
- 36MB 550MHZ ISSI
- 2GB 933MHz DDR3 SDRAM
- 256MB FLASH
Communication Ports
- Two SFP+ connectors
- One Serial ATA (SATA II) host port
- PCI Express (PCIe) x8 edge connector
- One RS422 transceiver with 1394 connector
System Monitor and Control
- Temperature sensor
- Fan control
Power
- PCI Express 6-pin power connector, 12V DC Input
- PCI Express edge connector power
Mechanical Specification
- PCI Express low-profile and half-length
连接示意图
Quartus design software license is not included in this kit.
主产品订购
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[TR5-Lite QDRII+ 550] TR5-Lite Development Kit
产品编号: P0167
 重量: 3,800g |
xxx |
选购配件 (如需选购, 请与主产品同时订购)
| No | 配件名称 | 售价(RMB) |
|---|---|---|
| 1. |
[HSMC-ICB] Industrial Communication Board
产品编号: P0060
重量: 500g |
xxx |
| 2. |
[HSMC_DLP]HSMC Debug & Loopback Connector Package
产品编号: P0057
重量: 500g |
xxx |
| 3. |
AC Power Cord (UK)
产品编号: FCB-3028-ULX
重量: 200g |
xxx |
Documents
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| TR5-Lite User Manual | 1.2 | 7742 | 2017-04-06 |
 |
CD-ROM
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| TR5-Lite CD-ROM | 3.0.0 | 2017-04-06 |
