THCB-HMF2 connector card(适用于TR4和DE4)
- 产品型号: S0090
- 产品品牌: TERASIC友晶科技/Intel FPGA
- 产品规格:
- 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
- 咨询热线:18062095810
The THCB-HMF2 connector card is a 160-pin high speed connector which is gives users more flexibility when utilizing the interfaces of HSMC connector. The purpose of the HSMC Height Extension Male to Female card (HMF2) is to increase the height of the HSMC connector to avoid any obstruction that might take place as a HSMC daughter card is connected. HMF2 connector can be connected as illustrated below:

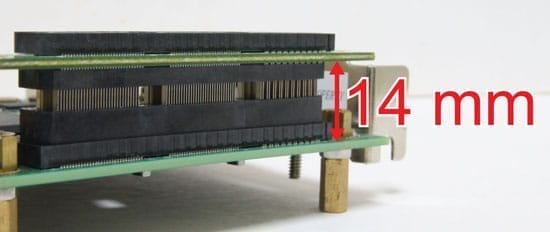

Height:
Connectivity:

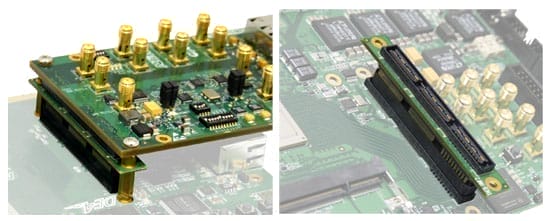

All FPGA host boards equipped with female HSMC connector can use the THCB-HMF2 to increase the height space between host and daughter cards. Some connection examples are shown below:

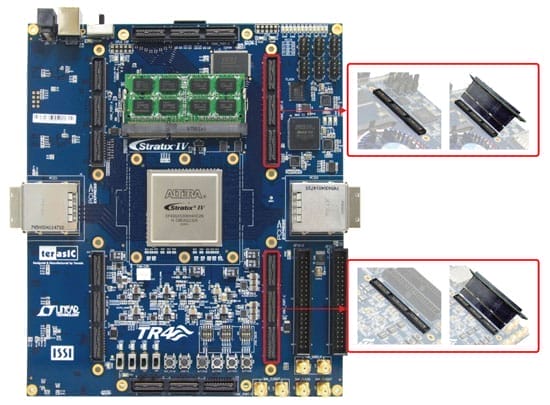

Connection between HMF2 Adapter Card and TR4 Board

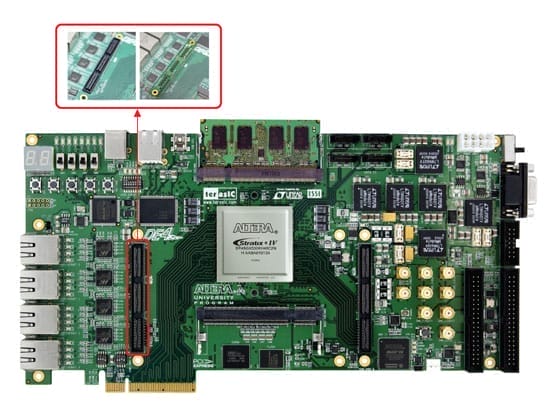

Connection between HMF2 Adapter Card and DE4 board
No | 产品名称 | 售价(RMB) |
---|---|---|
1. |
THCB-HMF2
产品编号: S0090
![]() |
xxx |
