【D8M-FMC】800万像素相机与HDMI 输出套件 (FMC介面
- 产品型号: D8M-FMC(Part No:P0449)
- 产品品牌: TERASIC友晶科技/Intel FPGA
- 产品规格: Omnivision 8 Mega Pixel Image sensor
- 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
- 咨询热线:18062095810
Terasic D8M-FMC is an 8-megapixel camera kit with a FMC low pin count connector interface. It includes a MIPI camera module, a MIPI decoder, and a HDMI-TX.
The MIPI camera module captures images and sends it out in a MIPI video signal package. This packet is converted into a 10-bit parallel Bayer pattern through a MIPI decoder. The data is transmitted through a FMC connector. The MIPI camera module has a built-in Voice Coil Motor (VCM) to control its focal length. Users can adjust it via the I2C interface. The D8M-FMC also includes a HDMI-TX for developers to display the processed video image on a monitor with HDMI input when the FPGA main board has no display capabilities.
The FMC connector is the standard expansion interface defined in VITA 57.1. Any main boards with a FMC connector can interface with the D8M-FMC.
Terasic D8M-FMC kit also includes camera capture and display reference designs. It comes in two versions. One is RTL code only and the other one uses components such as Altera VIP in Qsys. It enables users to rapidly be familiar with the operation of the camera module and develop custom applications based on these examples.
Specifications
- Package Interface: FMC with 1.8/2.5/3.0/3.3V I/O standard
-
MIPI Camera Module:
- Chip P/N: OV8865
- Color Filter Arrangement: Bayer Pattern
- View Angel: 70 degrees
- Lens Type: 1/3.2 inch
- Pixels: 3264x2448 (8 megapixels)
- Frame Rate: Maximal 60 frame per second at 1408 x 792 resolution and 30 frame per second at 3268 x 2448 resolution
- Support Focus Control
- Interface: MIPI
-
MIPI Decoder:
- Chip P/N: TC358748XBG
- MIPI CSI-2 Compliant
- MIPI to Parallel Port Converter
- Supports up to 4 data lanes
- HDMI TX v1.4
- Package Size: 73.4x60.0 mm

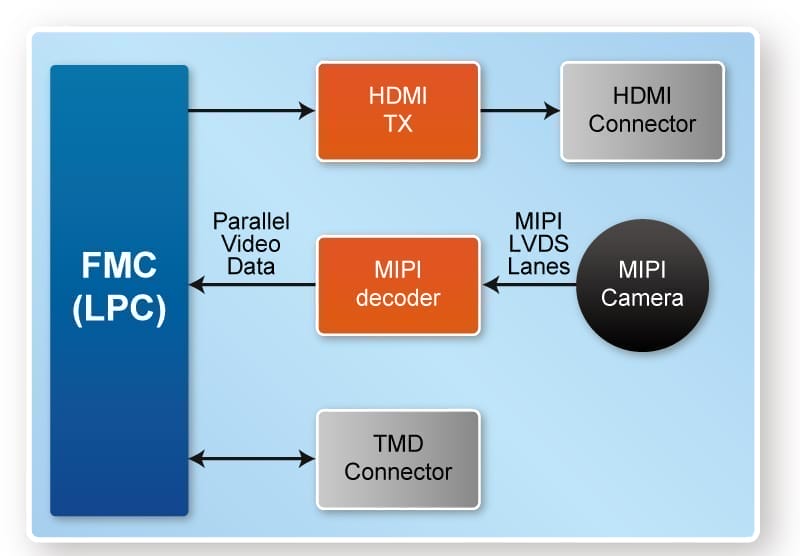

Block Diagram
The functional block diagram of D8M-FMC is shown above. MIPI Camera Module sends the video captured to MIPI Decoder via MIPI link. MIPI Decoder converts MIPI Video Data to parallel data and output to the main board through a FMC connector. The parameters of the MIPI Camera Module and MIPI Decoder can be configured by FPGA via I2C interface. For instance, number of output pixels from MIPI Camera Modules, RGB gain, position of focus, PLL of MIPI Decoder, and parameters of Video MIPI Decoder etc.
The D8M-FMC also includes a HDMI-TX for deveopers to display the processed video image on a monitor with HDMI input when the FPGA main board has no display capabilities.
ctivity

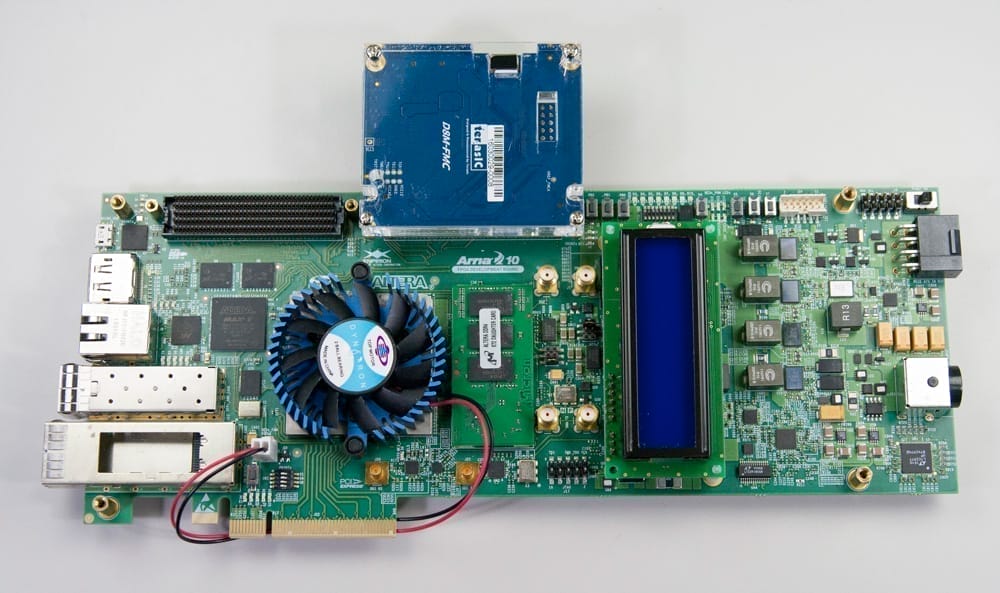

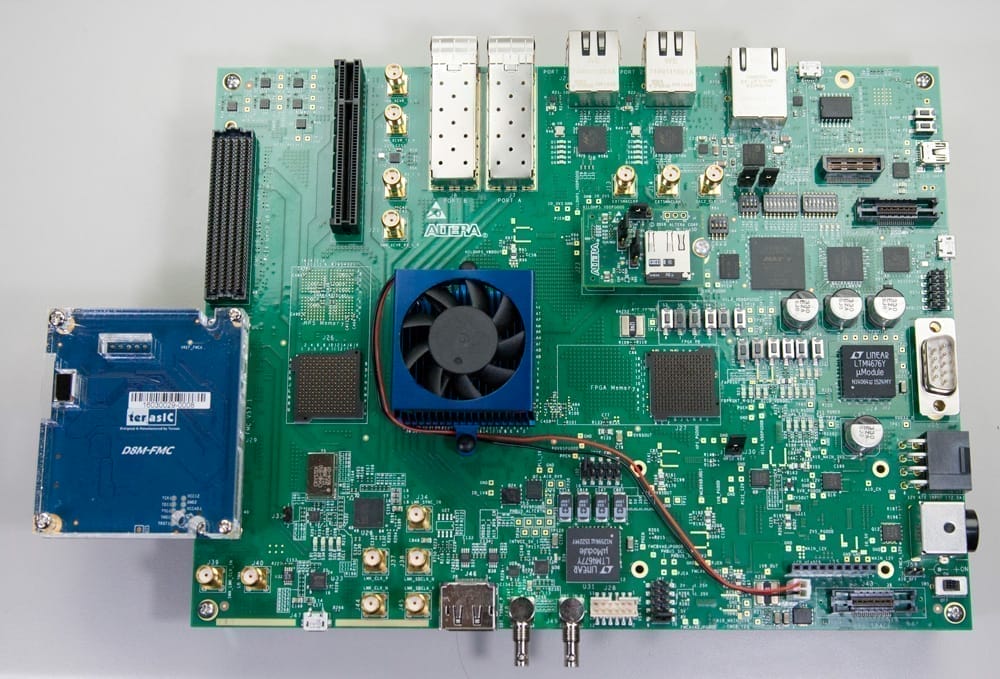

The D8M-FMC Package is designed for FPGA main boards with FMC expansion header.

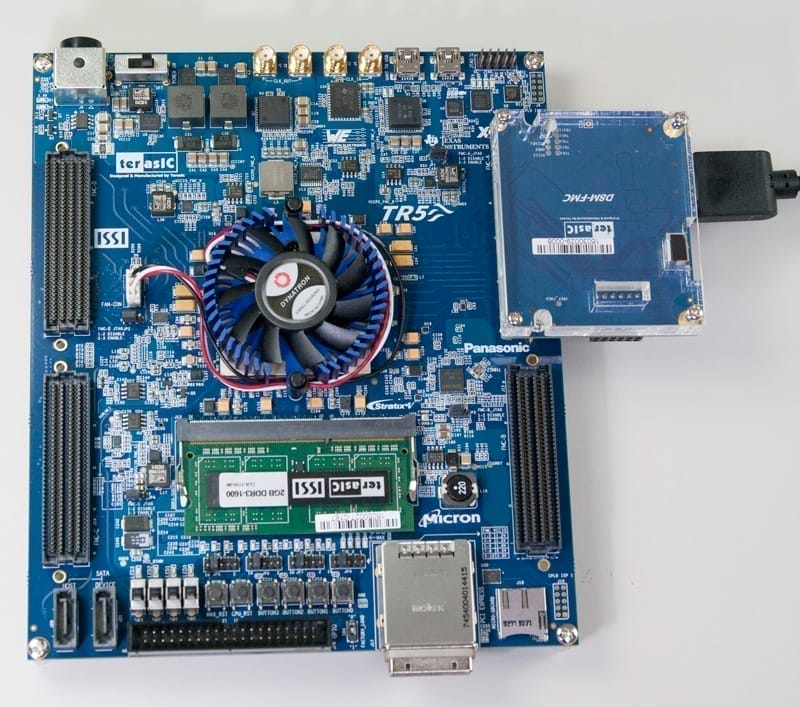

- Connect D8M-FMC with Terasic TR5
No | 产品名称 | 售价(RMB) |
---|---|---|
1. |
[D8M-FMC] 8 Mega Pixel Digital Camera Package
产品编号: P0449
![]() |
xxx |
