【COMM-HSMC】TERASIC友晶COMM-HSMC
- 产品型号: COMM-HSMC
- 产品品牌: TERASIC友晶科技/Intel FPGA
- 产品规格: RS-485 x2 ;CAN x2
- 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
- 咨询热线:027-87538900
The HSMC Communication card adds key interfaces to support a wide range of industrial, image processing, scientific and measurement requirements. From 10/100/1000 Ethernet PHY, to CAN, RS232, RS485, the HSMC Communication card can quickly get you started with your designs. Also included is a digital DVI transmitter port to display FPGA driven video content. The card allows users to evaluate included interfaces with any HSMC interface host boards.

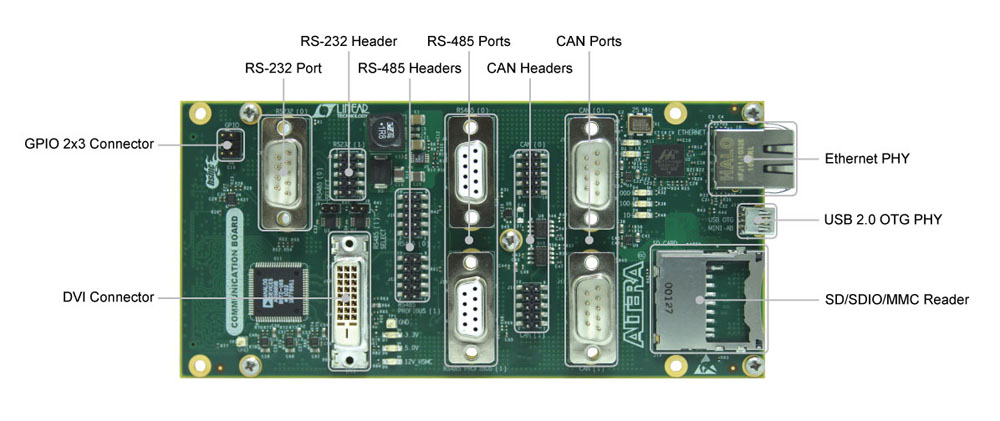

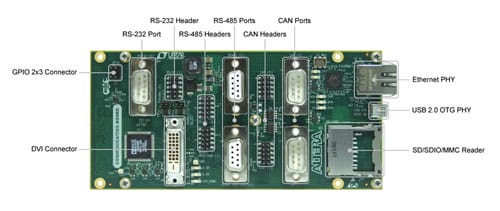

HSMC Communication Card:
Features
-
RGMII Ethernet PHY, RJ-45 connector
-
USB 2.0 OTG PHY with ULPI
-
RS-485 x2 with 2x5 0.1* header
-
CAN x2 with DB9 connector
-
GPIO with 2x3 0.1* connector

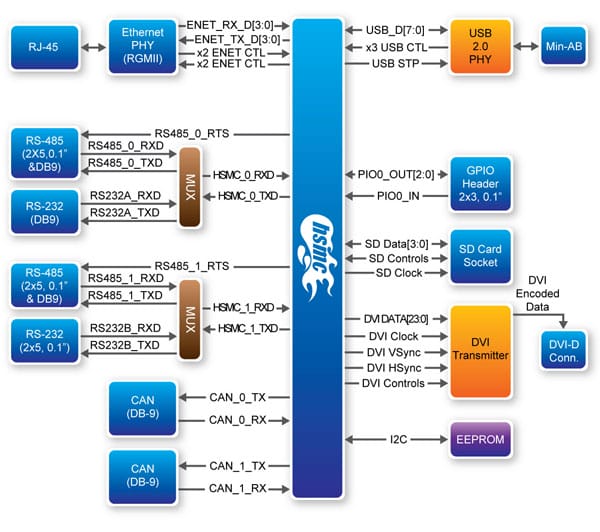

Block Diagram
Features
- RGMII Ethernet PHY, RJ-45 connector
- USB 2.0 OTG PHY with ULPI
- RS-485 x2 with 2x5 0.1* header
- CAN x2 with DB9 connector
- GPIO with 2x3 0.1* connector
Block Diagram
Connect DE3
Connect DE4
Connect DE2-115
Connect A2GX
No | 产品名称 | 售价(RMB) |
---|---|---|
1. |
[COMM-HSMC]HSMC COMMUNICATION BOARD
产品编号: P0078 重量: 500g
|
xxx |
