作为一款为高性能 FPGA 原型设计及高性能计算而打造的模块化和可扩展的解决方案‚ Apollo S10 SoM 将无可匹敌的性能和能效集成在一个微型设备中‚ 为模拟加速﹑分子动力学﹑机器学习等关键工作负载提升高达 90 倍的 CPU 性能｡
Apollo S10 SoM 采用 Intel^® 最新的 Stratix^® 10 SoC FPGA 器件‚ 该器件拥有 2800K 逻辑单元‚ 这使得 Apollo S10 SoM 在速度和功率上获得了极大的突破（它最高可降低 70%的功率）｡结合该开发板上的若干硬件接口‚ 如高容量﹑高带宽的 DDR4 SDRAM (高达64GB)﹑板载 USB-Blaster II﹑以及用于 I/O 扩展的 FMC/FMC+ 连接器‚ Apollo S10 SoM 在性能上登峰造极‚ 是上一代开发套件的两倍有余｡
此外‚ Apollo S10 SoM 还有可扩展空间｡ 为方便开发人员进一步开发Apollo S10 SoM的功能‚ Apollo 扩展板应运而生｡ 该扩展板配备了两个超低延迟‚ 可直连40Gbps QSFP+模块和Thunderbolt™3接口‚ 这对于用户评估其系统的I/O规划‚ 并围绕该规划创建定制系统来说‚ 无疑是如虎添翼！

FPGA

• Intel Stratix 10 Soc FPGA 1SX280HU2F50E1VG

FPGA Configuration

• On-Board USB Blaster II for FPGA programming and Debug
• AS Mode configuration from QSPI Flash

Clock and User Interface

• Four 50Mhz Single-ended Clock Source
• One 100Mhz Single-ended Clock Source
• Clock Generator Si5341
• LED x2, Button x2, Dip Switch x2, CPU Reset
• Power Switch
• FMC Voltage 1.8V/1.5V/1.2V Selection
• FMC+ Voltage 1.8V/1.5V/1.2V Selection

Memory

• 1024Mbit QSPI Flash (EPCQL1024 Compliant)
• Total of 64GB DDR4 x72 2133MT/s with ECC
  • Two independent DDR4 banks
  • One bank is shared with FPGA and HPS

Communication and Expansion

• FMC (Vita57.1) connector with 10 transceivers
• FMC+(Vita57.4) connector with 24 transceivers



HPS

• MicroSD Socket
• Gigabit Ethernet with RJ45
• USB OTG with Micro USB Connector
• UART to USB with Mini USB Connector
• RTC
• LED x1, Button x1, Cold Reset Button
• 1x6 GPIO Header



Dashboard System

• Input Power Monitor
• FPGA and Board Temperature Monitor
• Fan Control and Monitor
• Auto Fan Speed
• Auto Shutdown



Power Source

• 12V from 2x4 PCIe connector
• 12V from Samtec connector (reserved for carrier board)

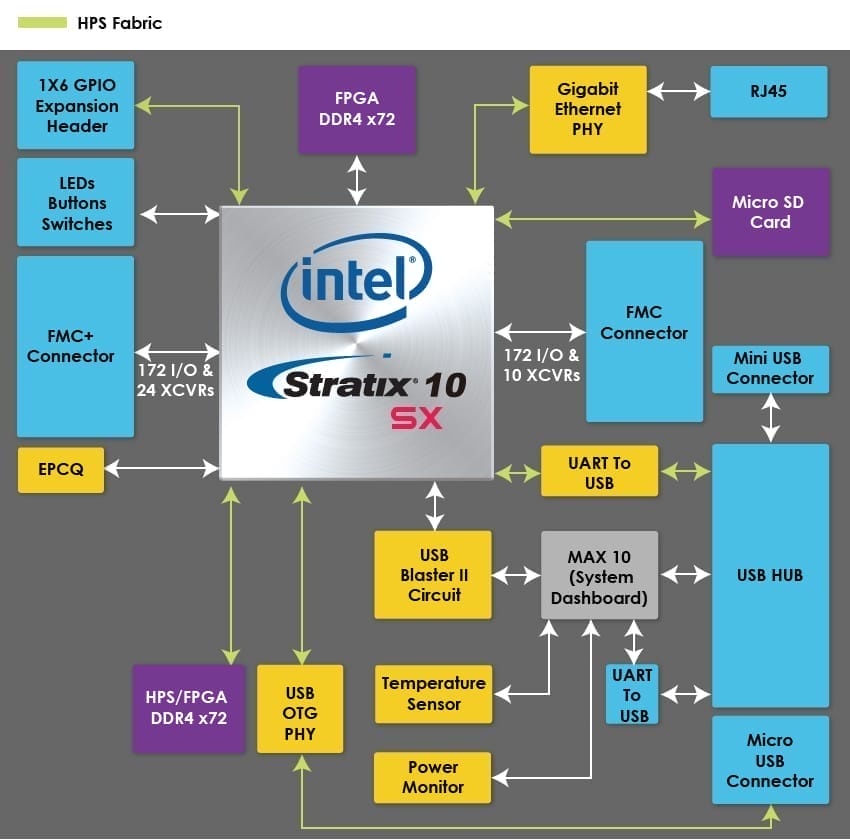

Block Diagram

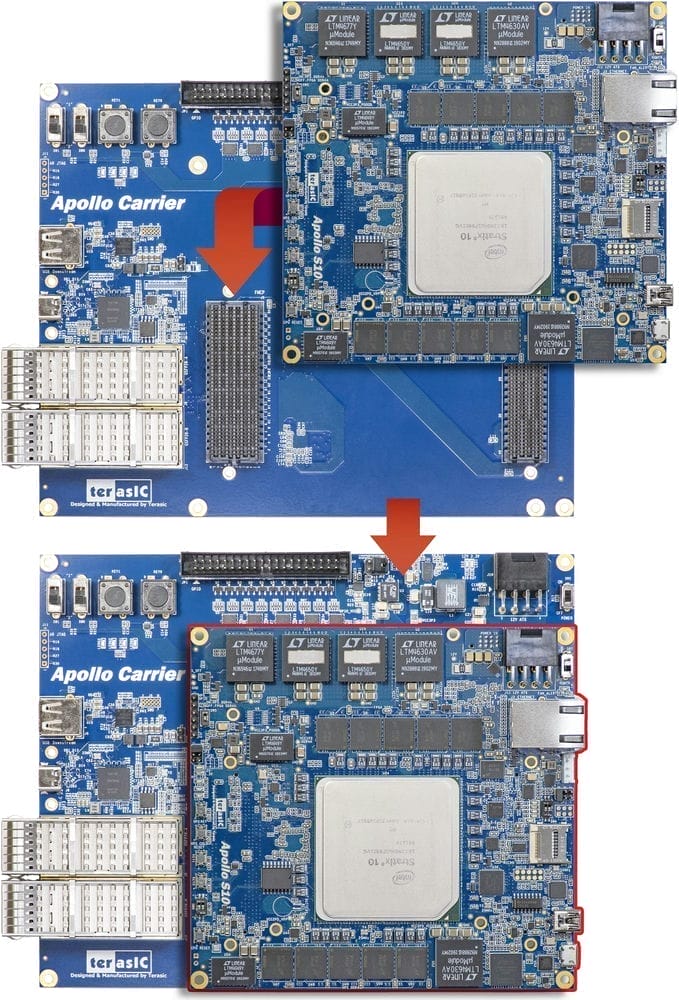

Apollo Developer Kit

• The Kit is composed by
  • Apollo S10 Module (heatsink installed)
  • Apollo Carrier Board

• The Apollo Carrier Board features includes:
  • PCIe Gen3 x4 via Thunderbolt 3 (Type-C Connector)
  • USB Downstream port via Thunderbolt 3 (Type-A Connector)
  • Two QSFP connectors (40G Ethernet)
  • Clock Generator to provide reference clock for transceiver IP
  • LED x4, Button x2, Switch x2
  • 2x20 GPIO Expansion Header. Adjustable IO Standard 3.3V/2.5V/1.8V.

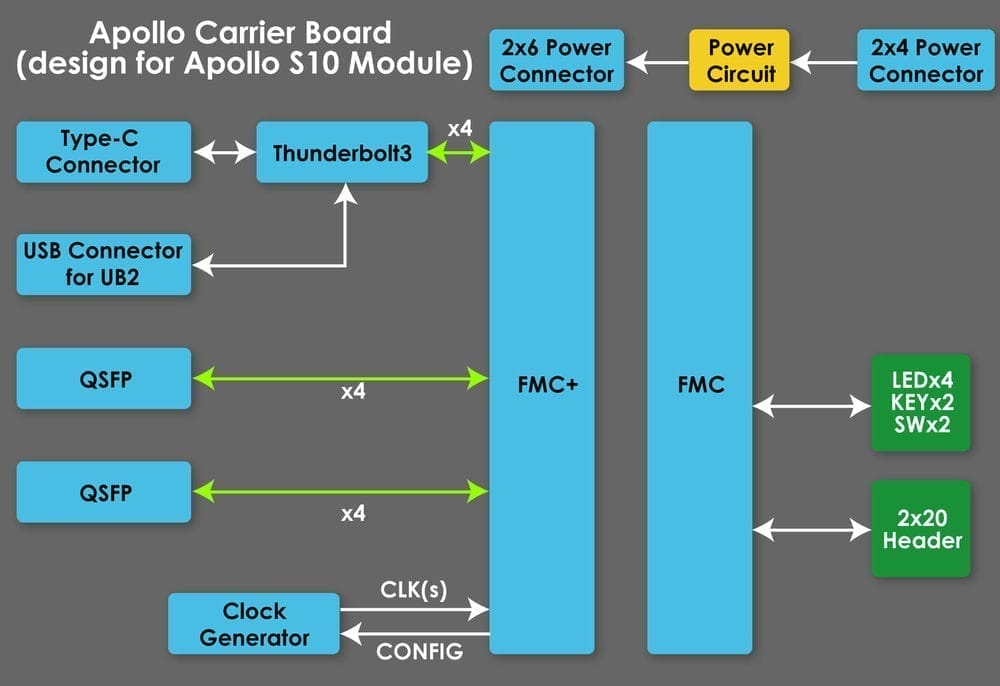

• The Block Diagram of Apollo Carrier Board

主产品订购

No	产品名称	售价(RMB)
1.	Apollo S10 SoM Board 产品编号: P0630  重量: 3,300g	xxx
2.	[Apollo_S10_Dvk] Apollo Developer Kit 产品编号: P0671  重量: 3,400g	xxx

选购配件 (如需选购, 请与主产品同时订购)

No	配件名称	售价(RMB)
1.	Micro USB OTG Cable 产品编号: FCB-3086-JMS  重量: 300g	xxx
2.	Xiaomi Mi Portable WiFi 产品编号: FXX-3061-MIX  重量: 100g	xxx
3.	AKiTiO 40Gbps Thunderbolt 3 Cable (0.5m) 产品编号: FCB-3226-AKT  重量: 100g	xxx

Documents

标题	版本	档案大小(KB)	新增日期	下载
Apollo Carrier Board User Manual revB	1.0.0	2495	2020-04-06
Apollo S10 User Manual	1.0.0	6629	2020-03-31

CD-ROM

Linux BSP (Board Support Package): MicroSD Card Image

标题	版本	档案大小(KB)	新增日期	下载
Linux Console (Kernel 5.4.13-lts )	1.0		2020-03-31
