【DK-SI-5SGTMC7N/S5GT】Altera Transceiver Signal Integrity开发板
- 产品型号: DK-SI-5SGTMC7N/S5GT(Part No:T0119)
- 产品品牌: TERASIC友晶科技/Intel FPGA
- 产品规格: Stratix V GT FPGA: 5SGTMC7K3F40C2N
- 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
- 咨询热线:18062095810

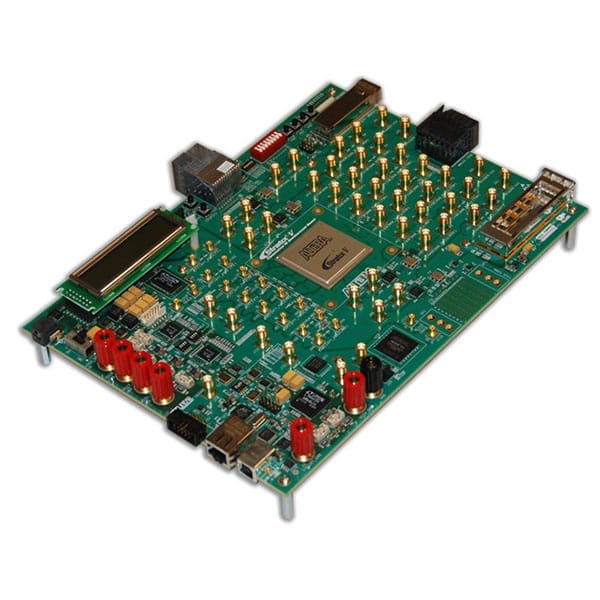

The Altera® Stratix® V GT Transceiver Signal Integrity (SI) Development Kit provides a platform for electrical compliance testing and interoperability analysis. The accessibility to multiple channels allows for real-world analysis as implemented in the system with transceiver channels available through SMA and popular backplane connectors. You can use this development kit to perform the following tasks:
Evaluate transceiver link performance up to 28 Gbps
Generate and check pseudo-random binary sequence (PRBS) patterns via a simple to use GUI (does not require the Quartus® II software)
Access advanced equalization to fine tune link settings for optimal bit error ratio (BER)
Perform jitter analysis
Verify physical media attachment (PMA) interoperability with Stratix V GT FPGAs for targeted protocols, such as CEI-25/28G, CEI-11G, PCI Express® (PCIe®) Gen 3.0, 10GBASE-KR, 10 Gigabit Ethernet, XAUI, CEI-6G, Serial RapidIO® , HD-SDI, and others
Use the built-in high speed backplane connectors to evaluate custom backplane performance and evaluate link BER
Featured device
5SGTMC7K3F40C2N
Configuration status and set-up elements
JTAG
On-board USB-BlasterTM
Fast passive parallel (FPP) configuration via MAX® II device and flash memory
Two configuration file storage
Temperature measurement circuitry (die and ambient temperature)
Clocks
50 MHz, 125 MHz, programmable oscillators (preset values: 624 MHz, 644.5 MHz, 706.25 MHz, and 875 MHz)
SMA connectors for supplying an external differential clock to transceiver reference clock
SMA connectors for supplying an external differential clock to the FPGA fabric
SMA connectors to output a differential clock from the FPGA's phase-locked loop (PLL) output pin
General user input/output
10-/100-/1000-Mbps Ethernet PHY (RGMII) with RJ-45 (copper) connector
16x2 character LCD
One 8-postion dipswitch
Eight user LEDs
Four user pushbuttons
Memory devices
128-megabyte (MB) sync flash memory (primarily to store FPGA configurations)
High speed serial interfaces
Four full-duplex GTB (28.05 Gbps) transceiver channels routed to MMPX connectors
Seven full-duplex GXB (12.5 Gbps) transceiver channels routed to SMA connectors
Short trace routed on a micro-strip
Six strip-line channels from the with all the trace lengths are matched across channels
21 full-duplex GXB transceiver channels routed to backplane connector
Seven channels to Molex® Impact® connector
Seven channels to Amphenol® XCede®
Seven channels to footprint of Tyco Strada® Whisper® (connector is not populated)
Power
Laptop DC input
Voltage margining

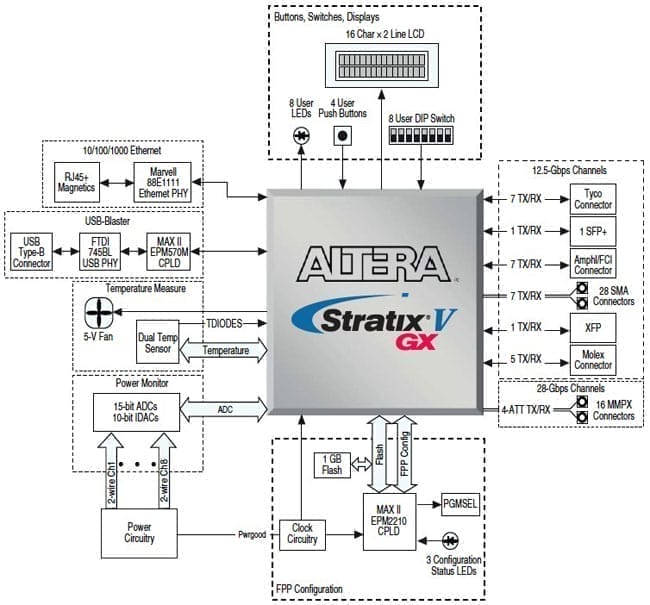

Stratix V GX Transceiver Signal Integrity Development Board Block Diagram
No | 产品名称 | 售价(RMB) |
---|---|---|
1. |
[S5GT] Altera Transceiver Signal Integrity Development Kit, Stratix V GT Edition
产品编号: T0119 ![]() | xxx |
Documents
CD-ROM
标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
---|---|---|---|---|
Kit installation (for boards with ES silicon) | 11.1.2 | 2013-01-03 | ![]() | |
Kit installation | 12.0 | 2013-01-03 | ![]() |
