【DK-SOC-1SSX-L-A】Intel® Stratix® 10 SX SoC Development Kit

产品型号： DK-SOC-1SSX-L-A
产品品牌： TERASIC友晶科技/Intel FPGA
产品规格： 1SX280LU2F50E1VG
产品价格：欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！

咨询热线：18062095810

The Intel® Stratix® 10 SoC Development Kit offers a quick and simple approach for developing custom ARM* processor-based SoC designs. The Stratix 10 SoCs offer full software compatibility with previous generation SoCs, a broad ecosystem of ARM software and tools, and the enhanced FPGA and digital signal processing (DSP) hardware design flow.

You can use this development kit to:

Evaluate Stratix 10 SoC device features and performance

Begin development of your hardware and software design

Use as a platform for target reference designs, OS/BSP, and tools

Hardware

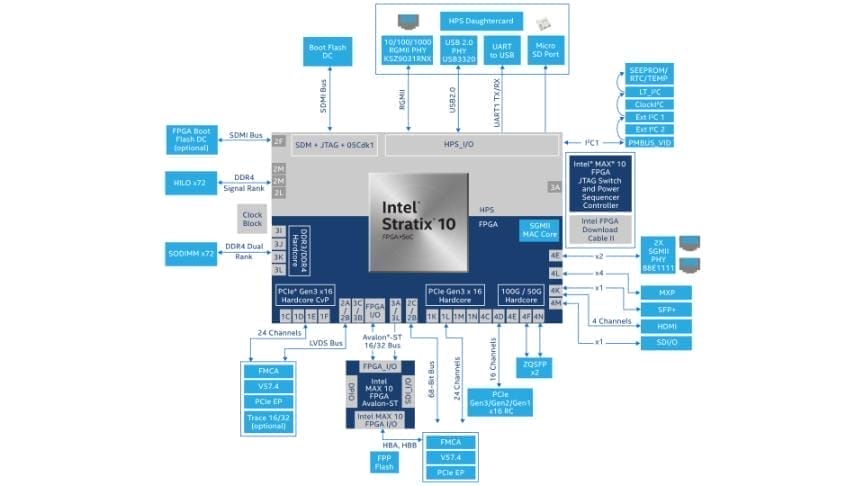

Stratix 10 SX SoC Development Board

Review Table 1 for featured Stratix 10 device

One HiLo DDR4 memory card (4 GB)

One DDR4 SODIMM memory card (16GB dual rank)

Two HPS peripheral daughter cards (OOBE and NAND)

Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os

Two quad small-form-factor pluggable (QSFP28) and one SFP+ port

Two FMC+ low-pin count (LPC + 15 transceivers) connector

One SFP+ interface

PCIe x16 edge connector (via cable - not included)

AC adapter power cables

Ethernet and USB cables

Software1

Design examples

Board Update Portal design

Board Test System (BTS) design

Documentation

Stratix 10 SX SoC Development Kit User Guide

Board design files

Design software2

Quartus Prime software (required)

Nios® II processor (optional)

MegaCore® intellectual property (IP) library (optional)

Mentor Graphics® ModelSim®-Intel software (optional)

Download and unzip Stratix 10 SoC Development Kit installer first. Install the Stratix 10 SoC Board Test System.

A one-year license for Quartus® Prime design software is available upon purchase of the kit. License activation instructions and FAQs .

Hardware
Stratix 10 SX SoC Development Board Review Table 1 for featured Stratix 10 device One HiLo DDR4 memory card (4 GB) One DDR4 SODIMM memory card (16GB dual rank) Two HPS peripheral daughter cards (OOBE and NAND) Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os Two quad small-form-factor pluggable (QSFP28) and one SFP+ port Two FMC+ low-pin count (LPC + 15 transceivers) connector One SFP+ interface PCIe x16 edge connector (via cable - not included) AC adapter power cables Ethernet and USB cables

Software1
Design examples Board Update Portal design Board Test System (BTS) design Documentation Stratix 10 SX SoC Development Kit User Guide Board design files Design software2 Quartus Prime software (required) Nios® II processor (optional) MegaCore® intellectual property (IP) library (optional) Mentor Graphics® ModelSim®-Intel software (optional)

No 产品名称售价(RMB)

1. Stratix 10 SX SoC Development Kit (Production)
产品编号: T0617 重量: 7,500g
xxx

2. Stratix 10 SX SoC Advanced Security Development Kit (Production)
产品编号: T0644 重量: 7,500g
xxx

No	产品名称	售价(RMB)
1.	Stratix 10 SX SoC Development Kit (Production) 产品编号: T0617 重量: 7,500g	xxx
2.	Stratix 10 SX SoC Advanced Security Development Kit (Production) 产品编号: T0644 重量: 7,500g	xxx

Documents

标题	版本	新增日期
Stratix 10 SX SoC Package Installer	ES (18.0 or higher)	2018-11-23
User Guide (ES Edition)	ES Edition	2018-11-23
Board Schematic		2018-11-23

Daughter Card Files

标题	版本	新增日期
IO48 OOBE Daughter Card	Rev A	2018-11-23
IO48 NAND Daughter Card	Rev A	2018-11-23
SDM QSPI Boot Flash Daughter Card	Rev A	2018-11-23
SDM NAND Boot Flash Daughter Card	Rev A	2018-11-23
SDM MicroSD Boot Flash Daughter Card	Rev A	2018-11-23
SDM eMMC Boot Flash Daughter Card	Rev A	2018-11-23
