【DK-DEV-1SGX-L-A】Intel Stratix 10 GX FPGA Development Kit

  • 产品型号: DK-DEV-1SGX-L-A
  • 产品品牌: TERASIC友晶科技/Intel FPGA
  • 产品规格: This development kit features a 1SG280HU2F50E2VG device and a one-year license for the Quartus® Prime Pro design software.
  • 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
  • 咨询热线:18062095810

Intel’s Stratix® 10 GX FPGA Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Stratix 10 GX FPGAs for your design needs.
You can use this development kit to:

  • Develop and test PCI Express® (PCIe®) 3.0 designs using the PCI-SIG®-compliant development board.

  • Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories.

  • Develop modular and scalable designs by using the FPGA mezzanine card (FMC) connectors to interface to a FMC mezzanine card provided by Altera partners and supporting protocols, such as JESD204B,  Serial RapidIO®, 10 Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI),OBSAI, and many others.

Hardware
  • Stratix 10 GX FPGA development board with a Stratix 10 GX FPGA

  • 1 GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards

  • FMC loopback card supporting transceiver, LVDS and single-ended I/Os

  • One quad small-form-factor pluggable (QSFP) cage

  • One FMC low-pin count (LPC + 15 transceivers) connector

  • PCIe x16 edge connector

  • Serial digital interface (SDI) channel

  • AC adapter power cables

  • Ethernet and USB cables


Software1
  • Design examples

  • Board Update Portal design

  • Board Test System (BTS) design

  • Documentation

  • Stratix 10 GX FPGA Development Kit User Guide

  • Board design files

  • Quartus Prime Pro software (required)

Notes:

Download and unzip Stratix 10 GX FPGA Development Kit installer first. Install the Board Test System.
 A one-year license for Quartus® Prime Pro design software is available upon purchase of the kit. License activation instructions and FAQs.

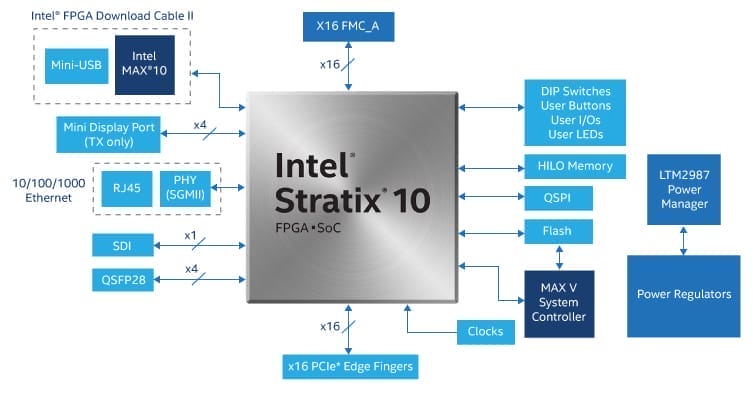

Figure 2. Stratix 10 GX FPGA Development Kit Block Diagram
