【DK-DEV-5CGTD9N】Cyclone V GT FPGA Development Kit
- 产品型号： DK-DEV-5CGTD9N/C5GT
- 产品品牌： TERASIC友晶科技/Intel FPGA
- 产品规格： The Cyclone V GT FPGA Development Kit features a 5CGT–D9-C7N production silicon device.
- 产品价格： 欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！
- 咨询热线：18062095810
The Altera® Cyclone® V GT FPGA Development Kit can be used to prototype Cyclone V GT FPGA or Cyclone V GX FPGA applications. It offers a quick and simple way to develop low-cost and low-power FPGA system-level designs and achieve rapid results. This kit supports a myriad of functionalities such as:
•FPGA prototyping
•FPGA power measurement
•Transceiver I/O performance up to 5.0 Gbps
•PCI Express® (PCIe®) Gen2 x4 (at 5.0 Gbps per lane)
•Endpoint or rootport support
FPGA Device
- Configuration and Debug
- Quad Serial Configuration device – EPCQ256 on FPGA
- On-Board USB Blaster (Normal Type-B USB connector)
- JTAG and AS mode configuration supported
Memory Device
- Communication
- Embedded USB-Blaster II (JTAG)
- Fast Passive Parallel (PFL)
- Altera EPCQ—EPCQ256SI16N (Quad Serial Configuration Device)
Standard communication ports
- PCIe x4 edge connector
- Gigabit Ethernet (GbE)
- One SMA clock output
- Two universal high-speed mezzanine card (HSMC) connectors, each with four high-speed serial transciever channels
- One serial digital interface (SDI) channel —1 SMB for RX and 1 SMB for TX
- Channel shared with HSMA via resistor stuffing option
Push buttons, DIP switches, and LEDs
Clocking
- Programmable clock generator for FPGA reference clock input
- 125 MHz LVDS oscillator for FPGA reference clock input
- 148.5/148.35 MHz LVDS VCXO for FPGA reference clock input
- 50 MHz single-ended oscillator for FPGA and MAX V CPLD clock input
- 100 MHz single-ended oscillator for MAX V CPLD configuration clock input
- SMA input (LVPECL)
Power
- Laptop DC Input 14 – 20 V adapter
- PCIe edge connector
System monitoring circuit
- Power (Voltage, Current, Wattage)
Mechanical
- PCIe card standard size (4.376" x 6.600")

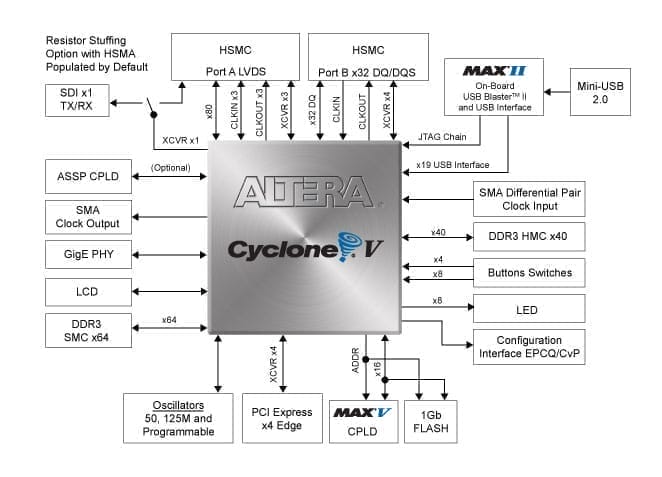

Block Diagram
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[C5GT] Altera Cyclone V GT FPGA Development Kit
产品编号: T0156
 重量: 3,400g |
xxx |
Documents
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Cyclone V GT FPGA Development Kit User Guide (PDF) | 2013-01-08 |
 |
||
| Cyclone V GT FPGA Development Board Reference Manual (PDF) | 2013-01-08 |
|
CD-ROM
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Kit installation | 2015-03-19 |
 |
