The Terasic DE5a-Net Arria 10 GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE5a-Net is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Arria 10 GX, delivering the best system-level integration and flexibility in the industry.

The Arria® 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the DE5a-Net to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the DE5a-Net delivers with two independent banks of DDR4 SO-DIMM RAM, four independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the DE5a-Net fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

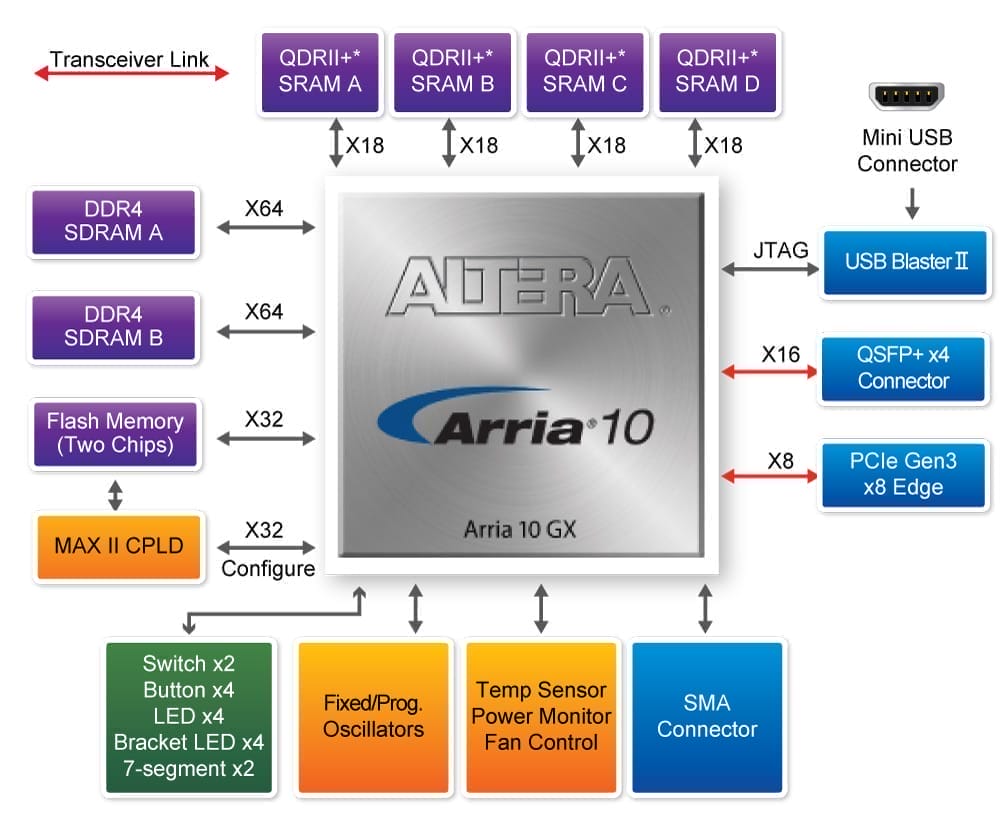

FPGA

• Altera Arria 10 GX FPGA (10AX115N2F45E1SG)

FPGA Configuration

• On-Board USB Blaster II or JTAG header for FPGA programming
• Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory

Memory

• 256MB FLASH
• 2 Independent DDR4 SODIMM Sockets, up to 16GB 1066MHz or 8GB 1200MHz for each socket
• 4 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each

Communication and Expansion

• Four QSFP+ connectors
• PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
• One RS422 expansion header

Others

• General user input / output:
  • 2 LEDs
  • 1 Bracket LED Array
  • 2 7-segments
  • 4 push-buttons
  • 2 slide switches
  • SMA clock input / output
• On-Board Clock
  • 50MHz Oscillator
  • Programmable Clock Generator
• System Monitor and Control
  • Temperature sensor
  • Power Monitor
  • Fan control
• Power
  • PCI Express 6-pin power connector, 12V DC Input
  • PCI Express edge connector power
• Mechanical Specification
  • PCI Express standard height and 3/4-length

主产品订购

No	产品名称	售价(RMB)
1.	[DE5a-Net-DDR4] DE5a-Net Board 产品编号: P0489  重量: 3,500g	xxx

选购配件 (如需选购, 请与主产品同时订购)

No	配件名称	售价(RMB)
1.	[SW-OPENCL] SW-OPENCL-SDK/DKE, license 产品编号: P0166  重量: 100g	xxx
2.	8GB (x64, SR) 260-Pin DDR4 SODIMM 产品编号: MMM-3055-MCN  重量: 200g	xxx
3.	DDR4 16GB (x64, DR) 260-Pin SODIMM 产品编号: MMM-3064-DSL  重量: 200g	xxx
4.	[TUB] Timing and UART Board 产品编号: P0504  重量: 500g	xxx

Documents

标题	版本	档案大小(KB)	新增日期	下载
DE5a-Net DDR4 Edition User Manual	1.0.1	8913	2017-10-02

CD-ROM

DE5a-Net DDR4 Edition BSP for Intel OpenCL 16.1

标题	版本	档案大小(KB)	新增日期	下载
DE5a-Net OpenCL BSP for Windows	1.0.0		2017-07-11
DE5a-Net OpenCL BSP for Linux	1.0.0		2017-07-11
DE5a-Net OpenCL User Manual	1.0.0	2004	2017-07-11
