【DK-DEV-5AGTD7N】TERASIC友晶Arria V GT FPGA Development
- 产品型号: DK-DEV-5AGTD7N//A5GT(Part No:T0125)
- 产品品牌: TERASIC友晶科技/Intel FPGA
- 产品规格: 5AGTD7K3F40I3N
- 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
- 咨询热线:18062095810

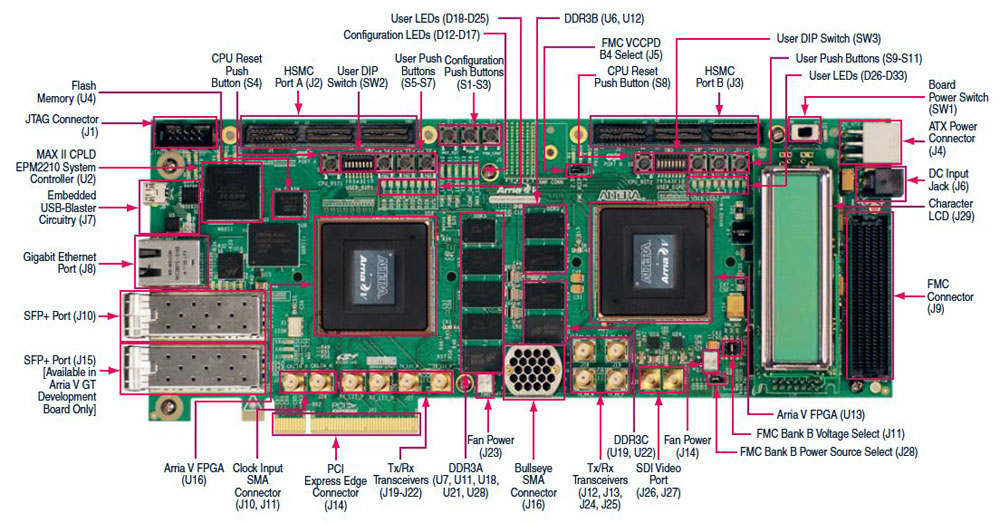

The Altera® Arria® V GT FPGA Development Kit provides a complete design environment that includes all the hardware and software that you need to develop full FPGA designs and test them within a system environment. The development kit is RoHS compliant, and includes the following features:
-
Two FPGAs for system-level design
- Arria V GT FPGA: 504K logic elements (LEs), F1517 package, 36 6G tranceivers, and I3 speed grade
- Three I/O expansion slots: two high-speed mezzanine cards (HSMCs) and one FPGA mezzanine card (FMC)
- 2 GB of DDR3 SDRAM memory, 4.5 MB of QDR II+ memory, and 1 Gb of flash memory
- Two SFP+ connections
- SMAs and the new Samtec Bull's Eye connectors
- Ability to measure individual power rails on each chip
Unit 1: Arria V GT FPGA: 5AGTFD7K3F40I3N
-
Memory
- 1,152-MB x72 DDR3 SDRAM
- 4.5-MB (1 Mb x 36) QDR II+ SRAM
- 1-Gb sync flash (x16)
-
Communication ports
- PCI Express® (PCIe® ) x8 edge connector
- HSMC Port A (Eight transceiver channels)
- USB 2.0
- Gbps Ethernet
- Chip-to-chip bridge with 29 LVDS inputs and 29 LVDS outputs, and x8 transceivers
- Two SFP+ channel
- Bull's Eye connector (Three 10-Gbps transceiver channel)
- SMA connector (One 10-Gbps transceiver channel)
-
Configuration
- JTAG
- Fast passive parallel (FPP) parallel flash loader (PFL)
-
Buttons, switches, LEDs, and displays
- One CPU reset push button
- Three user push buttons
- Eight dual in-line package (DIP) switches
- 16 user LEDs (eight bi-color diodes)
- Three PCIe LEDs
- Three HSMA Status LEDs
- 16x2 character LCD
Unit 2: Arria V GT FPGA: 5AGTFD7K3F40I3N
-
Memory
- x64 DDR3 SDRAM soft controller (or x32 hard intellectual property (IP) controller)
-
Communication ports
- HSMC Port B (Four transceiver channels)
- FMC Port (Ten transceiver channels)
- Chip-to-chip bridge with 29 LVDS inputs and 29 LVDS outputs, and x8 transceivers
- One serial digital interface (SDI) channel
- Bull's Eye connector (One 6-Gbps transceiver channel)
- Bull's Eye connector (One 10-Gbps transceiver channel)
- SMA connector (One 10-Gbps transceiver channel)
-
Configuration
- JTAG
- FPP PFL
-
Buttons, switches, LEDs, and displays
- One CPU reset push button
- Three user push buttons
- Eight DIP switches
- 16 user LEDs (eight bi-color diodes)
Miscellaneous
- EPM2210GF324 system controller
- EPM570GM100 on-board USB-Blaster™ II download cable
Clocking
- 50 MHz and 148.5-MHz oscillator
- 100 MHz and four 4 output programmable oscillators
- SMA input (LVPECL)
Power
- Laptop DC input
- PCIe edge connector
System monitoring
- Power (voltage, current, and wattage)—per unit per rail

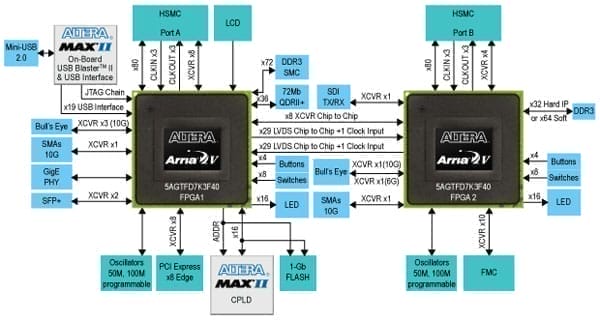

Arria V GT FPGA Development Board Block Diagram
No | 产品名称 | 售价(RMB) |
---|---|---|
1. |
[A5GT] Altera Arria V GT FPGA Development Kit
产品编号: T0125 重量: 3,500g
|
xxx |
