【DK-SOC-10AS066S-A】Intel Arria 10 SoC Development Kit
- 产品型号： DK-SOC-10AS066S-A/A10SoC（Part No:T0454）
- 产品品牌： TERASIC友晶科技/Intel FPGA
- 产品规格： Arria 10 10AS066N3F40E2SG1 SoC
- 产品价格： 欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！
- 咨询热线：18062095810
The Altera® Arria® 10 SoC Development Kit offers a quick and simple approach for developing custom ARM® processor-based SoC designs. Design productivity is one of the driving philosophies of the Arria 10 SoC architecture. The Arria 10 SoCs offers full software compatibility with previous generation SoCs, a broad ecosystem of ARM software and tools, and the enhanced FPGA and DSP hardware design flow.
With this kit, you can:
- Evaluate Arria 10 SoC device features and performance
- Begin development of your hardware and software design
- Use as a platform for target reference designs, OS/BSP, and tools
Altera’s Arria 10 SoCs have been designed to meet the performance and power requirements for mid-range applications such as:
- Wireless infrastructure equipment including remote radio unit and mobile backhaul*
- Compute and storage equipment including flash cache, cloud computing, and acceleration*
- Broadcast studio and distribution equipment including professional A/V and video conferencing*
- Military guidance, control, and intelligence equipment*
- Wireline 100G line cards, bridges and aggregation, 40G GPON*
- Test and measurement equipment*
- Diagnostic medical imaging equipment*
- PCI Express® (PCIe®) Gen3 x8 lanes (endpoint or root port)*
*Application-specific daughter cards, available separately, supporting a wide range of I/O and interface standards

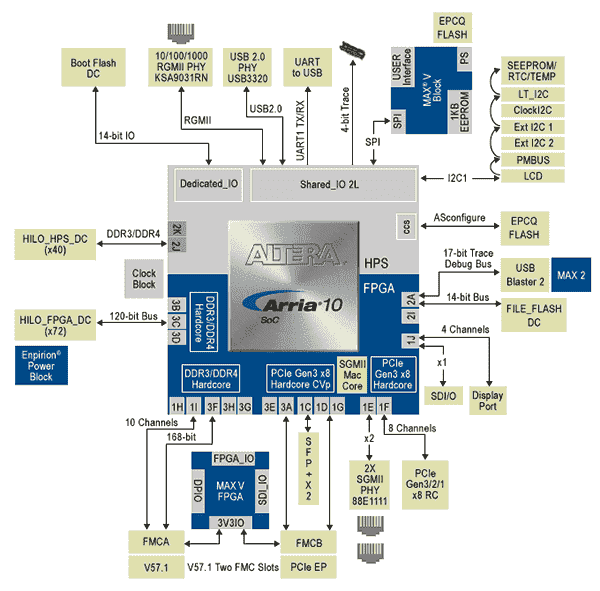

Arria 10 SoC Development Kit Block Diagram
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[A10SoC] Arria 10 SoC Development Kit
产品编号: T0454
 重量: 4,300g |
xxx |
Documents
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Arria 10 SX SoC Package Installer (Production Edition) |
1.0  |
2016-11-08 |
 |
|
| User Guide (Production Edition) |
1.0 |
2016-11-08 |
 |
|
| Quick Start Guide (Production Edition) |
2.0 |
2016-11-08 |
|
|
| Board Bring Up Guide |
2.0 |
2016-11-08 |
 |
|
| SoC EDS Installer |
2.0 |
2016-11-08 |
|
|
| Qsys and Quartus Tools |
1.0 |
2016-11-08 |
|
|
| Arria 10 SX SoC Package Installer (ES2 Edition) |
2.0 |
2015-12-01 | ||
| User Guide (ES2 Edition) |
2.0 |
2015-12-01 | ||
| Arria 10 GSRD (Golden System Reference Design |
1.0 |
2015-12-01 |
|
|
| Qsys and Quartus Tools |
1.0 |
2015-12-01 | ||
| Quick Start Guide (ES2 Edition) |
2.0 |
0000-00-00 |
