Arria® 10 GX Transceiver Signal Integrity Development Kit

  • 产品型号: DK-SI-10AX115S-A/A10GSI-E4(Part No:T0444)
  • 产品品牌: TERASIC友晶科技/Intel FPGA
  • 产品规格: 10AX115S2F45I1SG
  • 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
  • 咨询热线:18062095810

The Intel® Transceiver Signal Integrity Development Kit, Arria® 10 GX Edition helps you thoroughly evaluate the signal integrity of Arria 10 GX transceivers. This development kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Intel Arria 10 GX FPGAs.

With this kit, you can:

  • Evaluate transceiver performance from 1 Gbps up to 17.4 Gbps (GX)
  • Generate and check pseudo-random binary sequence (PRBS) patterns via an easy-to-use GUI
  • Dynamically change differential output voltage (VOD), pre-emphasis, and equalization settings to optimize transceiver performance for your channel
  • Perform jitter analysis
  • Verify physical medium attachment (PMA) compliance to PCI Express* (PCIe*), Gbps Ethernet (GbE), XAUI, CEI-6G, Serial RapidIO*, high-definition serial digital interface (HD-SDI), and other major standards

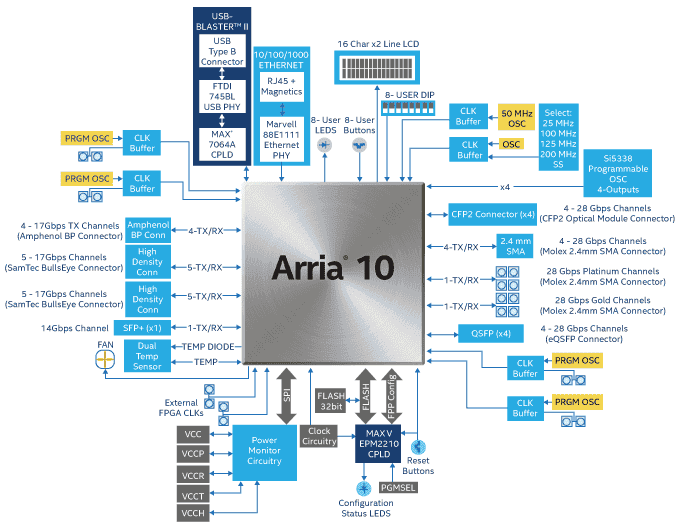

Figure 2. Arria 10 GX Transceiver Signal Integrity Development Kit Block Diagram

No 产品名称 售价(RMB)
1. [A10GSI-E4] Arria 10 GX Transceiver Signal Integrity Development Kit
产品编号: T0444  重量: 7,400g
xxx

Documents

标题 版本 档案大小(KB) 新增日期 下载
Arria 10 GX Transceiver Signal Integrity Installation Package (Production Edition) Production Edition    2017-05-11
User Guide (Production Edition) Production Edition    2017-05-11
Quick Start Guide (Production Edition) Production Edition    2017-05-11
Qsys and Quartus Prime Tools   2017-05-11
